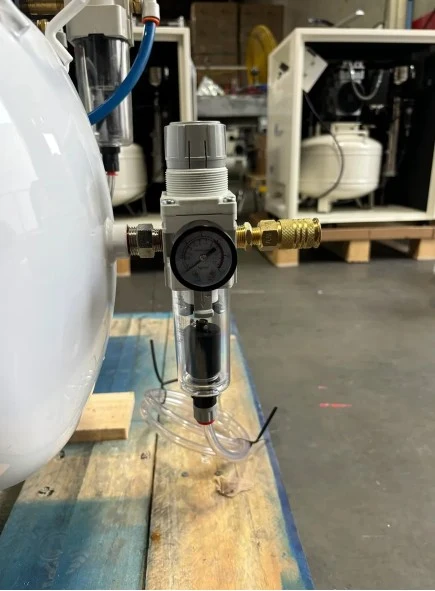

California Air Tools 120 PSI Output Pressure Regulator Assembly features 5 micron (uM) particulate filter with 1.5″ Dial Gauge.
(provides connection from 1/2″ NPT fitting, to Regulator, then 3/8″ NPT Adapter to 1/4″ NPT Air Output Fitting)
Filtration: 5 micron
Part Number: 90998-1-Kit
PURPOSE: Allows replacement of the 1/2″ Ball Valve with 1/4″ NPT Output 120 PSI Pressure Regulator w/Gauge Assembly Kit.*
CONNECTIVITY: Enables easy connection of a standard Industrial Air Hose to compressor via 1/4″ Industrial Female Push-To-Connect Hose Connector.
COMPATIBILITY: Supports the following California Air Tools compressor models:
- CAT-20060CAD
- CAT-20060DCC
- CAT-60050SCR
- CAT-60065C
- CALAIR 60037BD
- CAT-80060C
- CALAIR 80050BD

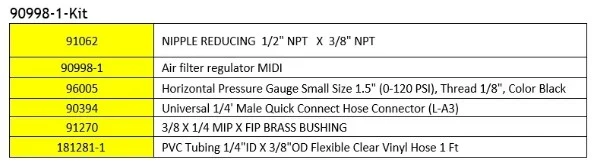

Output Pressure Regulator Assembly (90998-1-Kit), includes the following parts:
91062: NIPPLE REDUCING 1/2″ NPT X 3/8″ NPT
90998-1: Air filter regulator MIDI
96005: Horizontal Pressure Gauge Small Size 1.5″ (0-120 PSI), Thread 1/8″, Color Black
90394: Universal 1/4″ Industrial Male (w/Female Push-To-Connect) Hose Connector (L-A3)
91270: 3/8″ X 1/4″ MIP X FIP BRASS BUSHING
181281-1: PVC Tubing 1/4″ ID X 3/8″ OD Flexible Clear Vinyl Hose, 1 Ft
*If a 1/2″ NPT Air Pressure Filter Regulator, with 5uM micro mist separator, is preferred you may purchase this item via the following link [NOTE: 1/2″ fittings/adapters and Pressure Gauge (1/8″ thread) are not included and would need to be purchased separately].
Compatible Pressure Gauges:
Pressure Gauge 2″ Diameter Center Back Mount 1/4″ NPT 0-180 PSI
