40 dB Noise Level
110v 60hz
1.0 HP (Rated/Running)
8.0 Gallon Coated Steel Air Tank
4.00 CFM @ 40 PSI
3.00 CFM @ 90 PSI
80% Air Drying System

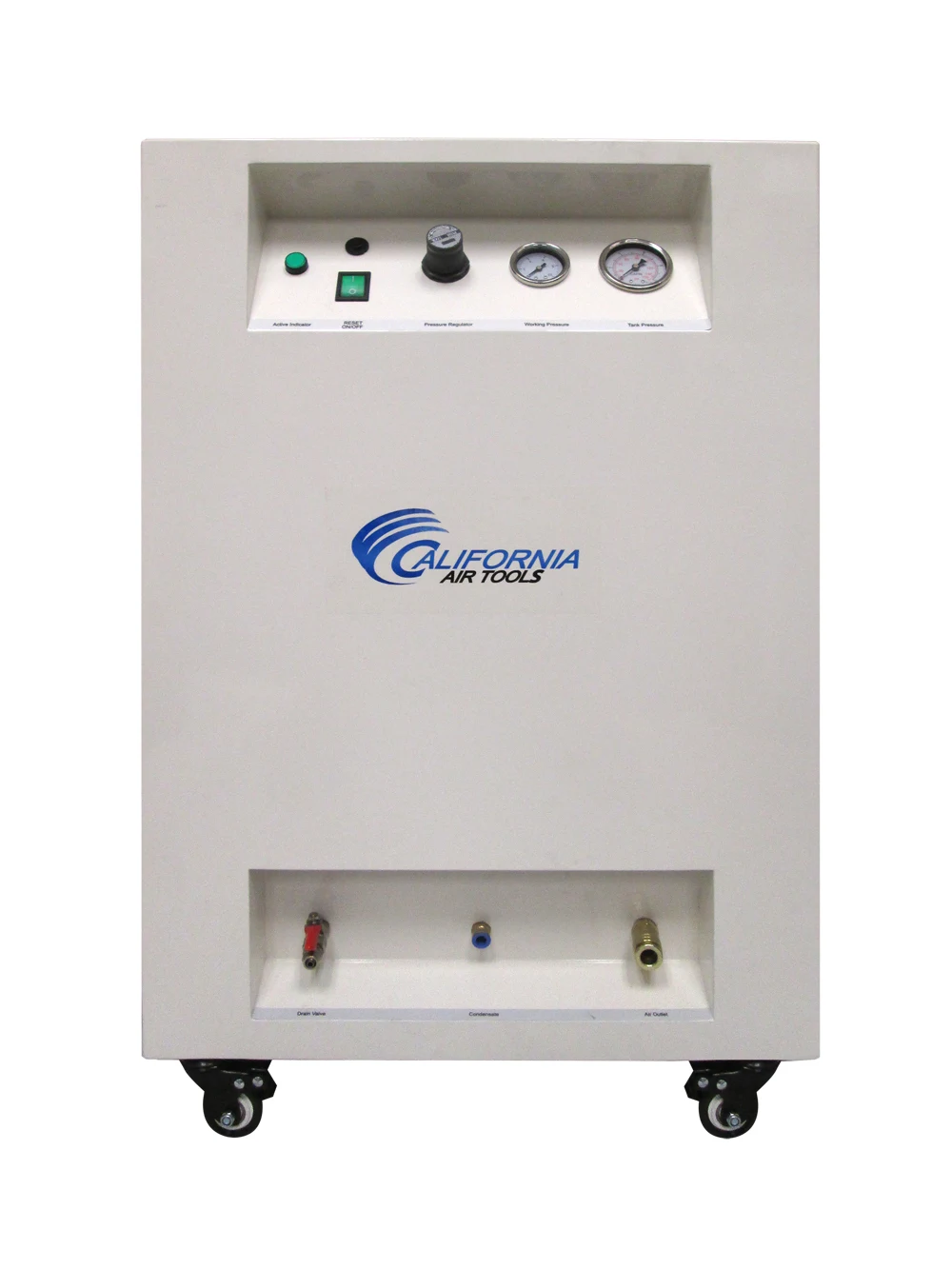

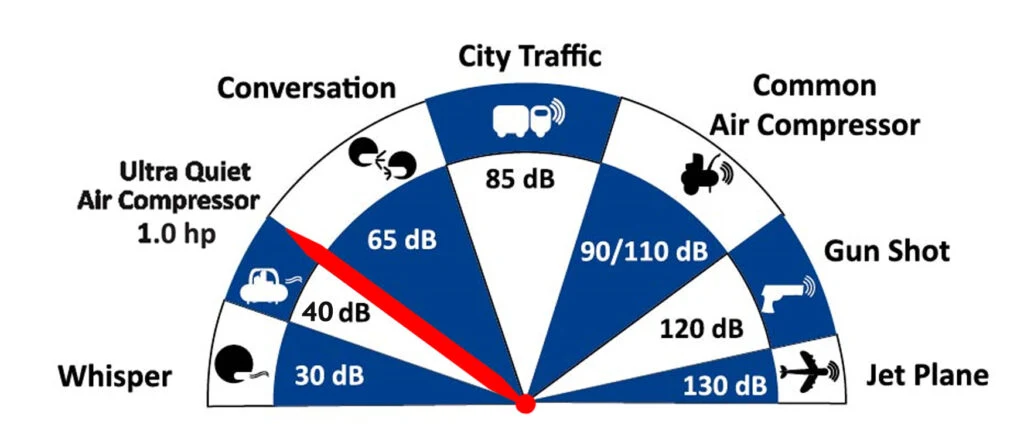

The CALIFORNIA AIR TOOLS 8010DSPC Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 1.0 horse power air compressors in the industry having only 40 decibels of sound.
The powerful 1.0 HP motor operates at only 1400 RPM creating less noise, vibration and creating less wear.
The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability.*
The CAT-MP100LF Motor/Pump is tested for a minimum pump life of 4000 hours before service. 30% more life before repair.
The large 8.0 gallon steel air tank is internally coated with epoxy to prevent any corrosion.
The complete Sound proof Cabinet is 157 lbs.

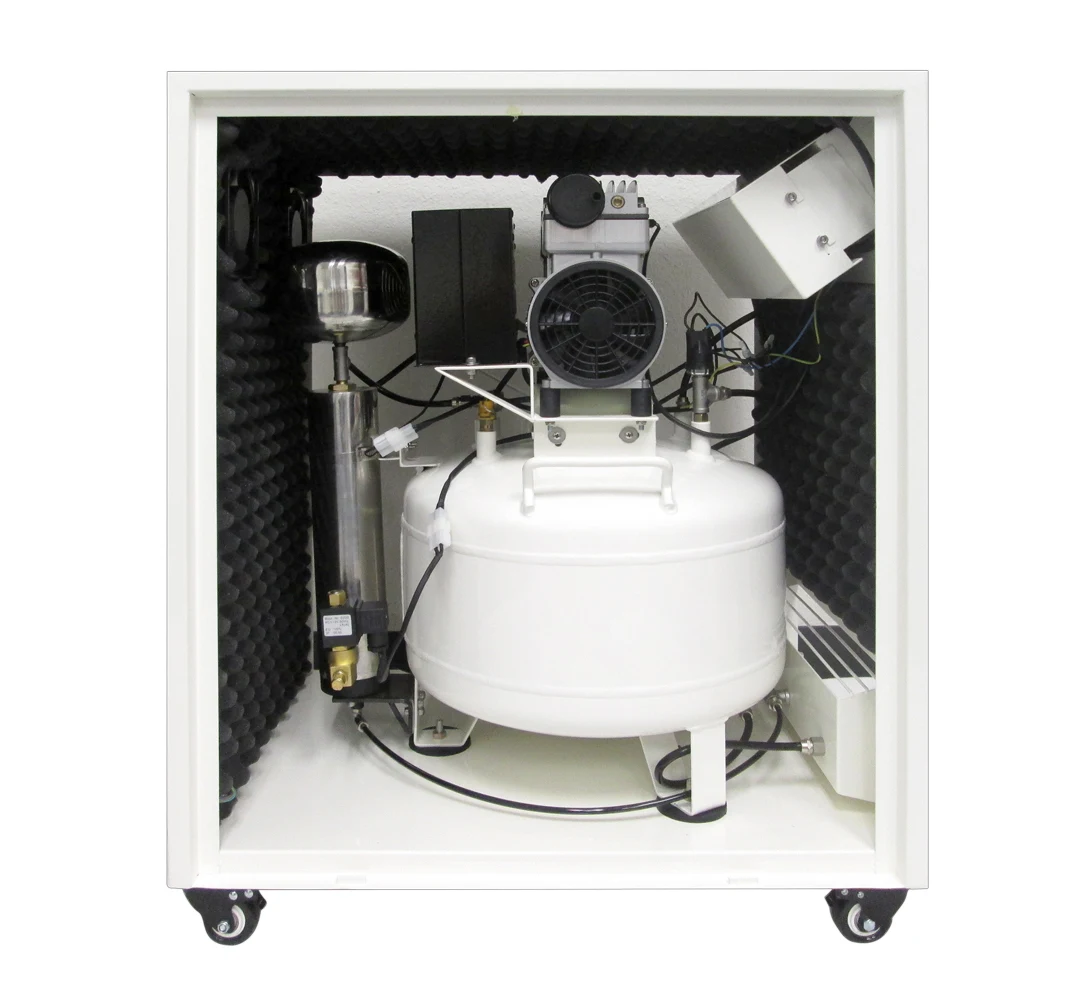

The Sound proof Cabinet is made of a sturdy metal frame with 1/4″ Acoustic Sound Proofing Foam insulation to reduce the noise by 30%.

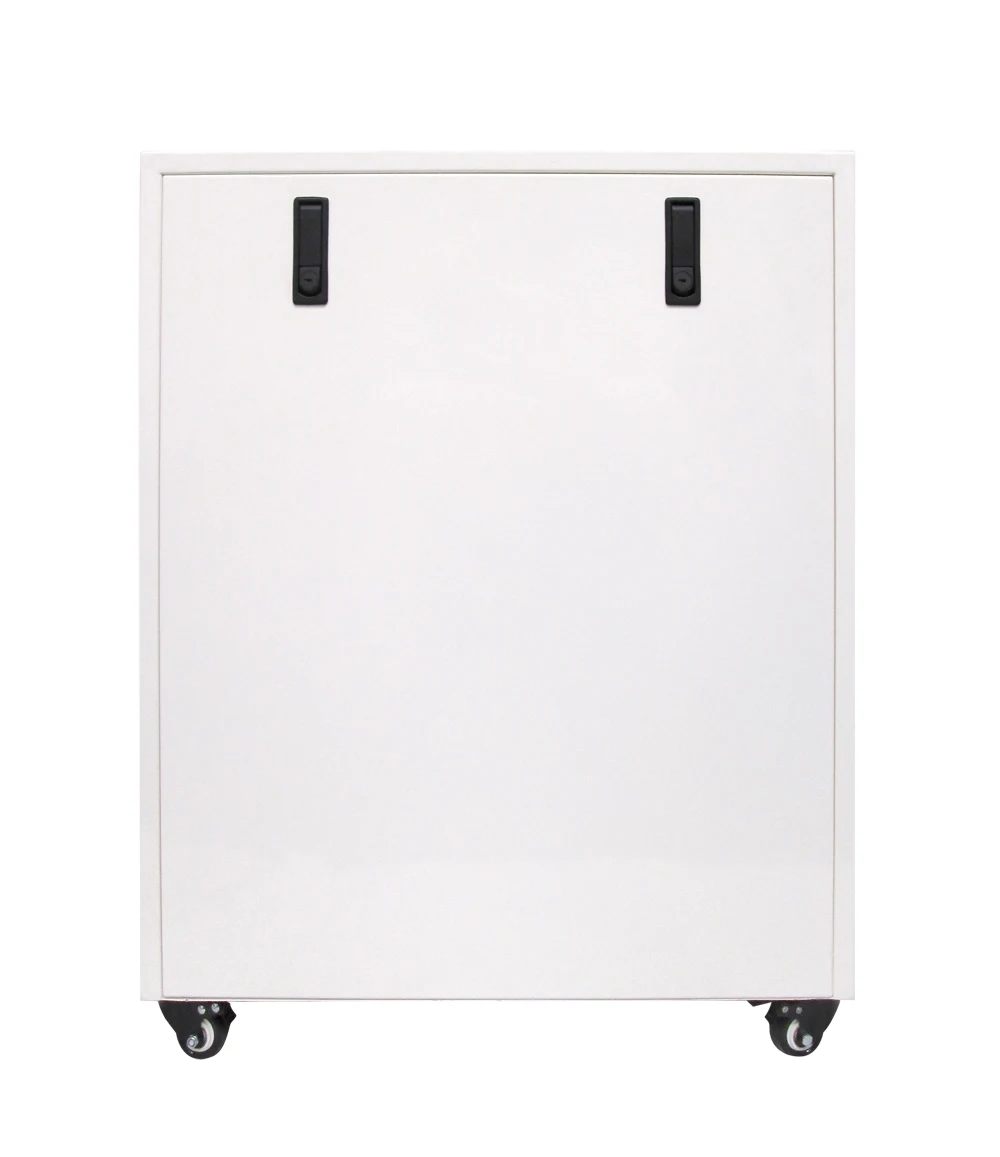

The cabinet has two latching doors that allows for easy access to the air compressor and componets.

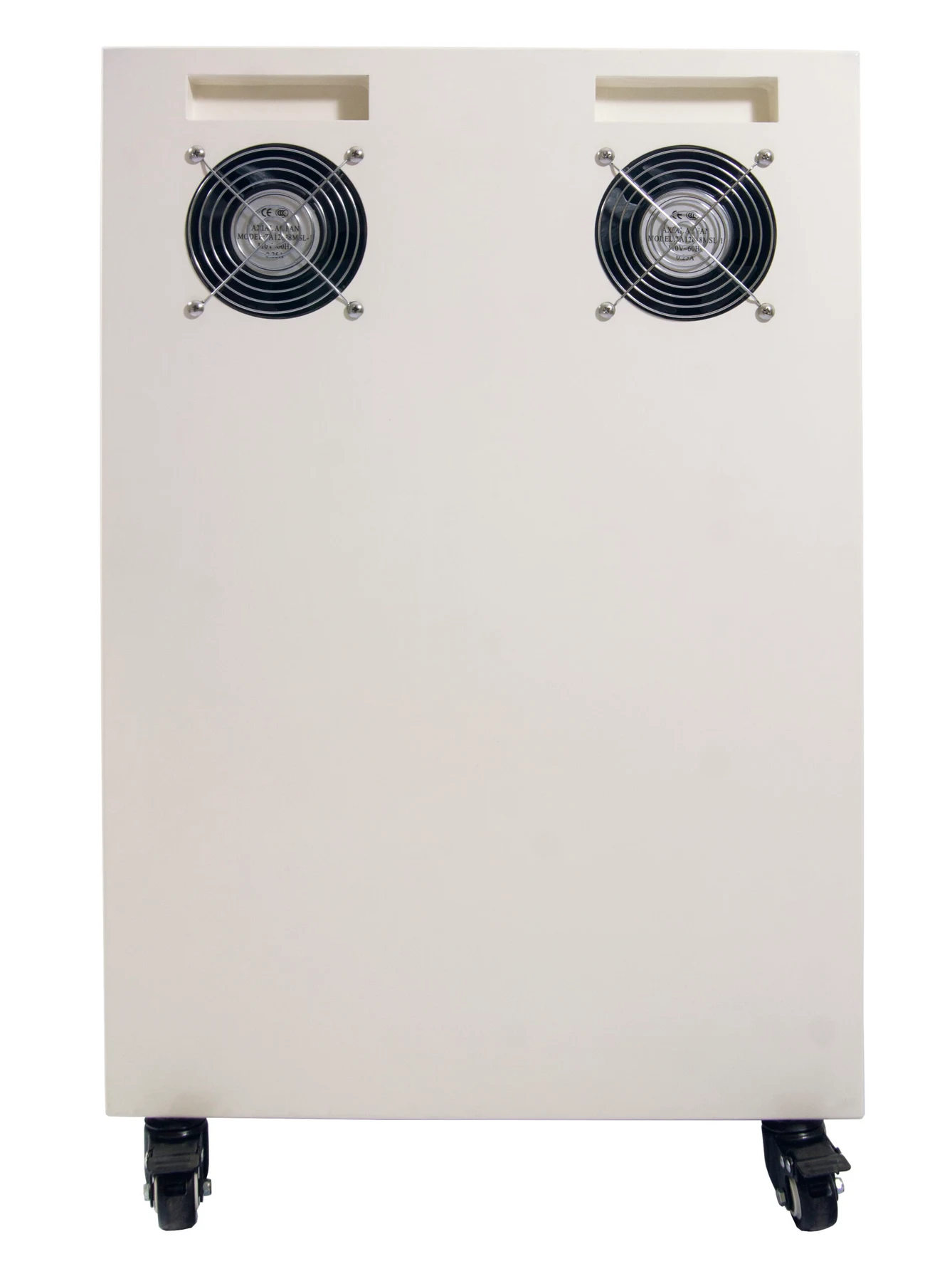

The two cabinet exhaust fans are used to remove air from the cabinet for a cool working condition for the air compressor
The 4 caster wheels makes moving the air compressor from location to location very easy.
The 80% Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery.
To dry the air from the air compressor an Aftercooler and 80% Air Dryer are utilized.
The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer.
This air compressor is ideal for anyone working inside (office, shop, store, warehouse or home) where noise is a major issue.

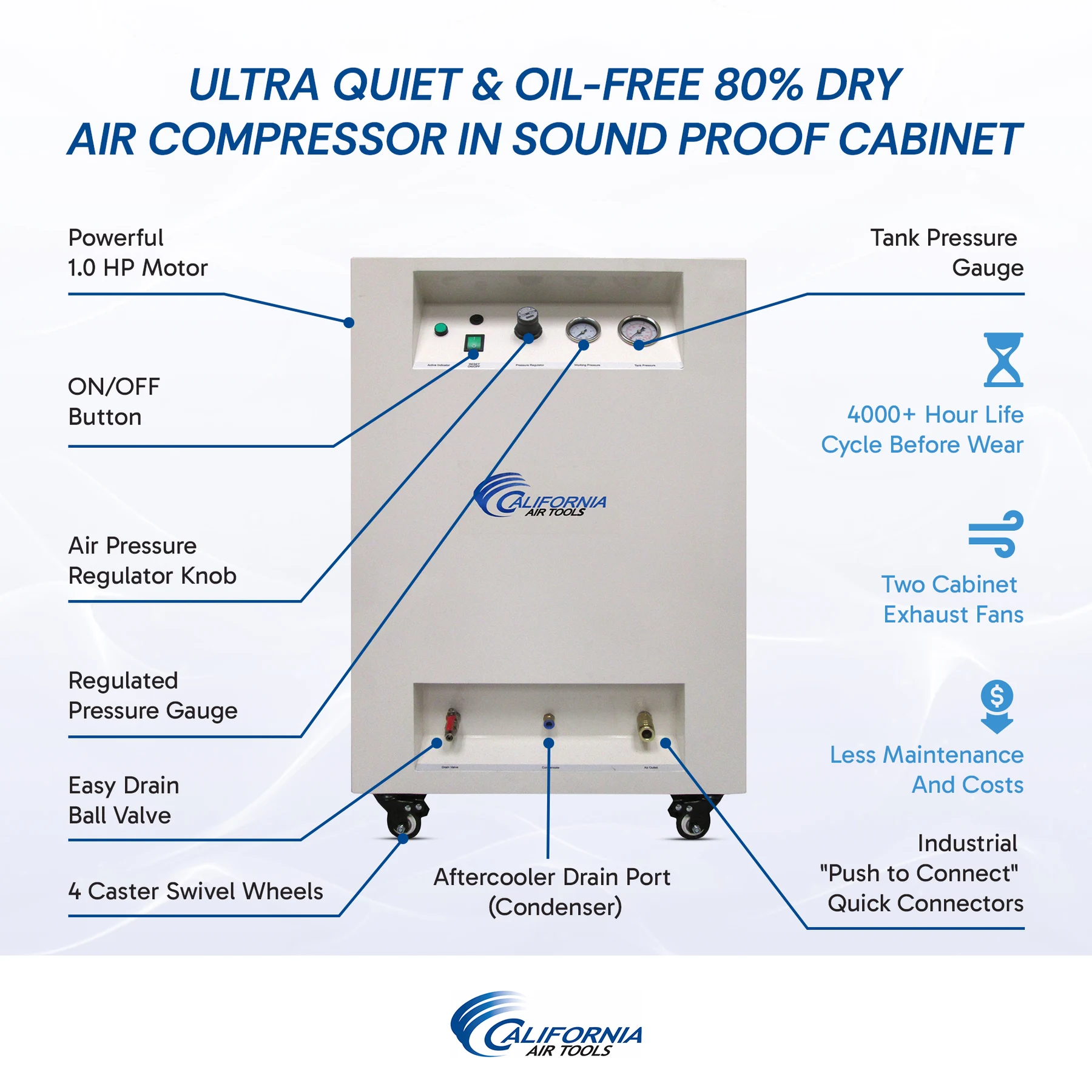

Features:
* Ultra Quiet – Only 40 decibels
* Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
* Two pressure control gauges
* One – Female industrial “Push to Connect” quick connector
* Thermal Overload Protector
* 115 PSI Maximum Pressure
* Kick On Pressure 85 PSI – Kick Off Pressure 115 PSI
* 110v / 60 Hz
* Low Amp Draw – Only 7.6 Amps
* Commercial Use: Refer to State & City Codes
* Tank fill rate from empty to full 3.15 minutes
* Duty Cycle – 70/30*
* Maximum continuous running 30-60 min. (Depending PSI & CFM)

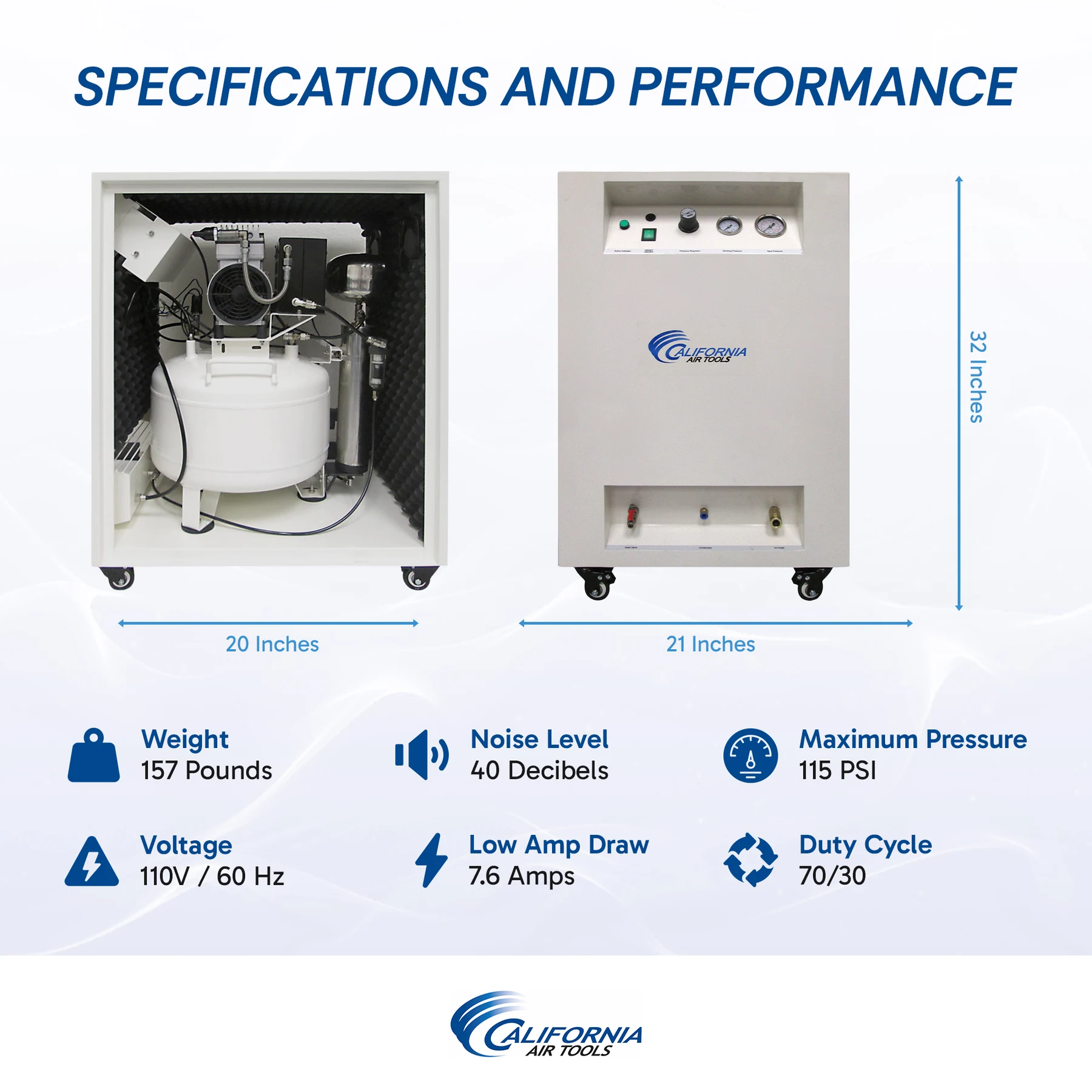

* L (20″) x W (25.75″) x H (31.5″)
* 156 pounds
* Non-ASME Air Tank
* 18 Month Limited Warranty
* Air Dryer – Includes Activated Alumina desiccant with a 4000 hour life.
Activated Alumina is used in air prepurification (due to it’s high water
and carbon dioxide adsorption capacity) and adsorption of sulphur
compounds.
* Aftercooler (condenser)
* Sound Proof Cabinet
* 4 Caster Swivel Wheels
* Commercial Use: Refer to State & City Codes
DRY AIR SYSTEM MAINTENANCE:

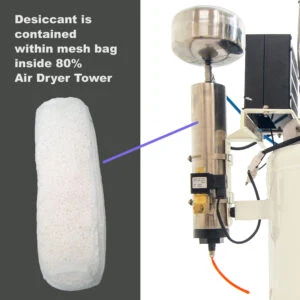

Recommended replacement of 1lb bag of desiccant, located within vertical dry air tower, every 3000-4000 motor/pump running hours (1-2 years/average).
PERIODIC MAINTENANCE REQUIREMENTS:
Replace the 80% Air Dryer Desiccant beads/Activated Alumina every 4000 operating hours (~2 years on average).
Replace 1 Hp air filter (attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment.
Part Number 90227
